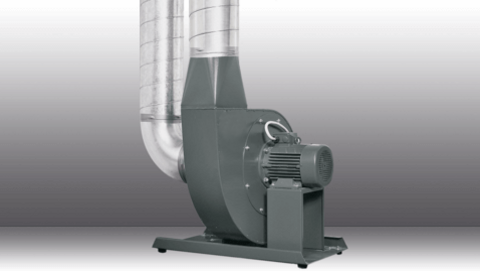

RG SERIES
Medium-pressure fans for exhaust air operation without filtration
Dust, fumes or vapours need not always be filtered. RG extraction fans designed for extraction operation work together with capture elements (e.g. an extraction arm) to extract dust- and fumous air and directed to the required area unfiltered via a pipe system. The RG series devices are suitable for granulates or as a feed blower for ventilation of rooms, tanks and shafts.
Application RG series
Single- and multiple work station extraction of dust, fumes and vapours in trade and industry
In combination with filter units
For exhaust air operation without filtration
For connection to capture elements
Welding
Soldering
Welding fumes
Soldering smoke
Dusts
Vapours
Stationary setup
Fixed extraction systems which can be connected next to processing machines.
ATEX CONFORM
Available for ATEX zones on request
High power
Rugged processing
Low operating costs
Wide range of applications
Low space requirement thanks to
compact construction
A/C for RG-100 and RG-200
Stainless steel (V2A) in the food industry
Motor assembled on left
Variable blower connection
Free of ignition sources for extraction of inflammable substances
Downloads & data RG series
| RG |
|---|
| Max. airflowm³/h |
| Intakemm |
| Max. negative pressurePa |
| Motor*kW |
| Dimensions RG (L/B/H)mm |
| Noise leveldB(A) |
| RG | 100 | 200 | 300 | 400 |
|---|---|---|---|---|
| Max. airflowm³/h | 1,000 | 2,000 | 3,000 | 3,200 |
| Intakemm | 100 | 150 | 180 | 250/315 |
| Max. negative pressurePa | 1,400 | 1,600 | 2,300 | 3,150 |
| Motor*kW | 0.55 | 1.1 | 2.2 | 3.0 |
| Dimensions RG (L/B/H)mm | 535 x 450 x 480 | 595 x 520 x 555 | 640 x 535 x 610 | 711 x 700 x 1,012 |
| Noise leveldB(A) | 80 | 82 | 84 | 84 |
| RG |
|---|
|
Max. airflow m³/h |
|
Intaker mm |
|
Max. negative pressure Pa |
|
Motor* kW |
|
Dimensions RG (B/T/H) mm |
|
Noise level dB(A) |
| RG | 500 | 600 | 700 | 800 |
|---|---|---|---|---|
|
Max. airflow m³/h | 4,000 | 5,500 | 7,000 | 8,000 |
|
Intaker mm | 250/315 | 315/355 | 315/400 | 355/400 |
|
Max. negative pressure Pa | 3,400 | 3,500 | 3,400 | 3,950 |
|
Motor* kW | 4.0 | 5.5 | 5.5 | 7.5 |
|
Dimensions RG (B/T/H) mm | 711 x 700 x 1,012 | 737 x 700 x 1,062 | 762 x 700 x 1,062 | 820 x 1,000 x 1,198 |
|
Noise level dB(A) | 84 | 84 | 83 | 84 |
*Mains voltage/ Mains frequency: 400V/50Hz
| RG |
|---|
| Standard version |
| RG | 100 | 200 | 300 | 400 |
|---|---|---|---|---|
| Standard version | 01011 | 01021 | 01031 | 01441 |
| RG |
|---|
| Standard version |
| RG | 500 | 600 | 700 | 800 |
|---|---|---|---|---|
| Standard version | 01451 | 01461 | 01471 | 01481 |
CONTACT RG series
WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION
We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!
Accessories RG series
Extraction arms
For capturing welding- and soldering fume, gases, vapour and dusts. Connection to extraction system or fan possible.
Extraction hood
Optimal capture directly at origin. Flanged, square or modular system extraction hoods are available depending on the application.
Extraction hoses
Conveyor connection for solid, liquid and gaseous media. Flexible, vibration-absorbent and noise-damping.
