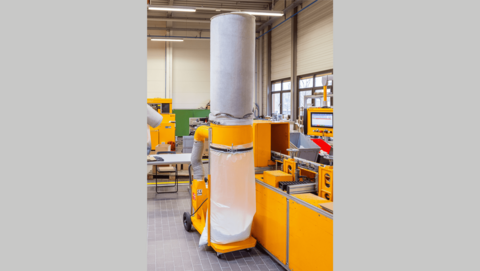

RG SERIES WITH DUST FILTER BAG
Mobile extraction unit for connecting to processing machines.
In the basic version, contaminated air is filtered via a dust filter bag; the high-value variant is equipped with a long-life filter cartridge. The mobile extraction unit can be stored on a mobile unit or assembled to the wall using a bracket.
In the commercial wood processing area, these types of devices are not approved according to TRGS 553. We offer the DUSTOMAT dust extractor tested by the German employers’ liability insurance assurance.
Application RG series with dust filter bag
Mobile filter system for dusts
For connection to processing machines
Single and multi0station extraction
in trade and industry
Plastic dusts
Metal dusts
Swarf
Mobile set-up
Easy and flexible to use makes it ideal for frequently-changing use locations.
Sawing, cutting, separating
Grinding, polishing
Refilling, emptying, mixing
Simple and effective filter system
Mobile device for flexible use
For universal use
'Can be delivered with dust filter bag or long-life cartridge
A/C for RG-100 and RG-200
Wall bracket
Downloads & data RG series with dust filter bag
| RG with dust filter bag, mobile | 100 | 200 | 300 |
|---|---|---|---|
| Max. airflow m³/h | 1,000 | 2,000 | 3,000 |
| Intake mm | 100 | 150 | 180 |
| Max. negative pressure Pa | 1,400 | 1,600 | 2,300 |
| Motor* kW | 0.55 | 1.1 | 2.2 |
| Dimensions (L/B/H) mm | 400 x 550 x 500 | 490 x 600 x 550 | 540 x 630 x 600 |
| Sound level dB(A) | 80 | 82 | 84 |
*Mains voltage/ Mains frequency: 400V/50Hz
| RG with dust filter bag, mobile | 100 | 200 | 300 |
|---|---|---|---|
| With dust filter bag | 04011 | 04021 | 04031 |
| With cartridge filter | 04111 | 04121 | 04131 |
| RG wall bracket | 100 | 200 | 300 |
|---|---|---|---|
| With dust filter bag | 08011 | 08021 | 08031 |
| With cartridge filter | 08111 | 08121 | 08131 |
CONTACT RG series with dust filter bag
WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION
We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!
Accessories RG series with dust filter bag
Extraction hoses
Conveyor connection for solid, liquid and gaseous media. Flexible, vibration-absorbent and noise-damping.
Paper filter bag
Disposable bags for collecting gathered dust for low-dust disposal.
Plastic filling bags
Tough plastic sacks for collecting gathered dust for low-dust disposal. Multi-use.
