System extraction hood

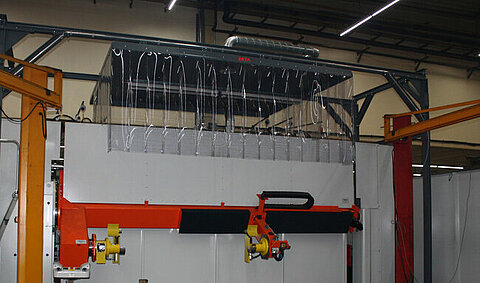

Modular system extraction hood if point extraction is not possible.
The modular extraction hood system is used wherever point extraction is not feasible. Smoke gases and vapours can be captured large-scale at the source, which ensures a high degree of flexibility in the workplace. The extraction hood with the filter system can be connected via a pipeline system. The modular design offers maximum flexibility and can be aligned to your application-specific requirements.
The system extraction hood has fixing lugs, for hanging from the ceiling. Welding protection strips prevent the discharge of smoke gases and welding spatter and provide glare protection. An integrated, hinged baffle plate enables quick and quick and easy cleaning without tools.
Gallery System Extraction Hood
Application System extraction hood
For connecting to fan or extraction system
Can be used for processes where local capture is not practical
- Welding, soldering
- Grinding, polishing
- Decanting, filling, mixing
- and many more
- Metal dust
- Welding fumes
- Vapours
- Chemical dusts
- CFRP/GFRP dusts
- Paper dusts
- and many more
- Available in customised versions thanks to modular design
- Easy device cleaning without tools thanks to hinged baffle plate
- Cost-effective extraction solution thanks to efficient extraction technology
- Fixing lugs for suspension from the ceiling
- Optional welding protection strips for additional capture of fumes and welding spatter
Downloads & data System extraction hood
| System extraction hood | BG002915 | BG002916 | BG002918 | BG002921 |
|---|---|---|---|---|
| Dimensions (L x W) mm | 1,000 x 1,000 | 1,000 x 1,500 | 1,000 x 2,000 | 1,000 x 2,500 |
| Connection diameter mm | 160 | 180 | 200 | 250 |
| Opt. Number of welding protection strips pc. | 16 | 20 | 22 | 26 |
| System extraction hood | BG002917 | BG002919 | BG002922 | BG002920 |
|---|---|---|---|---|
| Dimensions (L x W) mm | 1,400 x 1,500 | 1,400 x 2,000 | 1,400 x 2,500 | 2,000 x 2,000 |
| Connection diameter mm | 200 | 250 | 250 | 2x 200 |
| Opt. Number of welding protection strips pc. | 22 | 24 | 28 | 30 |
| System extraction hood | BG002923 | BG002924 | ||
|---|---|---|---|---|
| Dimensions (L x W) mm | 2,000 x 2,500 | 2,800 x 2,500 | ||
| Connection diameter mm | 2x 250 | 2x 250 | ||
| Opt. Number of welding protection strips pc. | 34 | 38 |
| System Extraction Hood | 1,000 x 1,000 | 1,000 x 1,500 | 1,000 x 2,000 | 1,000 x 2,500 |
|---|---|---|---|---|
| Order No. | BG002915 | BG002916 | BG002918 | BG002921 |
| System Extraction Hood | 1,400 x 1,500 | 1,400 x 2,000 | 1,400 x 2,500 | 2,000 x 2,000 |
|---|---|---|---|---|
| Order No. | BG002917 | BG002919 | BG002922 | BG002920 |
| System Extraction Hood | 2,000 x 2,500 | 2,800 x 2,500 | ||
|---|---|---|---|---|
| Order No. | BG002923 | BG002924 |
CONTACT System extraction hood
WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION
We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!
